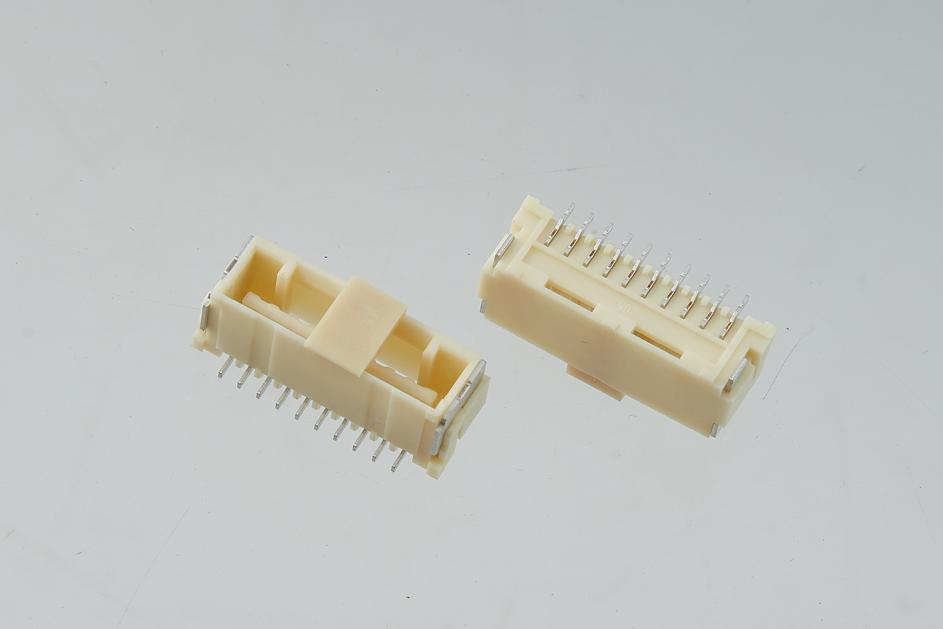

WF15 SERIES 1.5mm Wafer Connector for Automotive Headlights

WF15002-54201/WF15003-54201/WF15010-54201…

Send email to us Download Datasheet

Product Detail

Product Tags

Key Features & Benefits

High Reliability

1.Robust design for vibration resistance and extreme temperature tolerance (-25°C to +85°C).

2.Gold-plated contacts ensure low resistance and stable conductivity.

Compact & Lightweight

1. 1.5mm pitch wafer design saves space, ideal for tight installations in vehicle headlight modules.

2.Lightweight construction (weight: ≤0.5g per contact).

Easy Integration

1.Plug-and-play design with color-coded terminals for quick assembly.

2.Compatible with standard SMT/LD processes.

Certifications

1.IATF 16949 (Quality Management for Automotive Industry)

2.ISO 9001/14001

Technical Specifications

Parameter	Value
Pitch	1.5mm (±0.1mm tolerance)
Number of Contacts	2–10 positions (configurable)
Voltage Rating	100V DC / 12V AC
Current Rating	2A per contact
Operating Temperature	-40°C to +125°C
Termination Type	IDC (Insulation Displacement Connector)
Wire Gauge Support	2.0A(24 AWG) 1.5A (26 AWG) 1.0A(28 AWG)
Stand Packing Quantity	800/reel
Weight	0.3–0.8g per connector
Certifications	IATF 16949, ISO9001 14001

Applications

●Automotive Lighting Systems: Headlights, Fog Lights, Tail Lights, Interior Lighting Modules.

●Target Users: Automotive OEMs, Tier-1 Suppliers, Aftermarket Parts Manufacturers.

Why Choose Us?

●Global Compliance: Meets strict automotive standards (ISO, IATF, ).
●Cost-Effective: Competitive FOB/EXW pricing with Low MOQ
●Rapid Delivery: Support DDP shipping to worldwide destinations within 15–30 days.
●After-Sales Support: 24/7 technical assistance
