Short Description:

● 27000 times of insertion and plug out

● ISO13485 Certification

● Product compliant to ROHS and Halogen free

● High temperature resistance

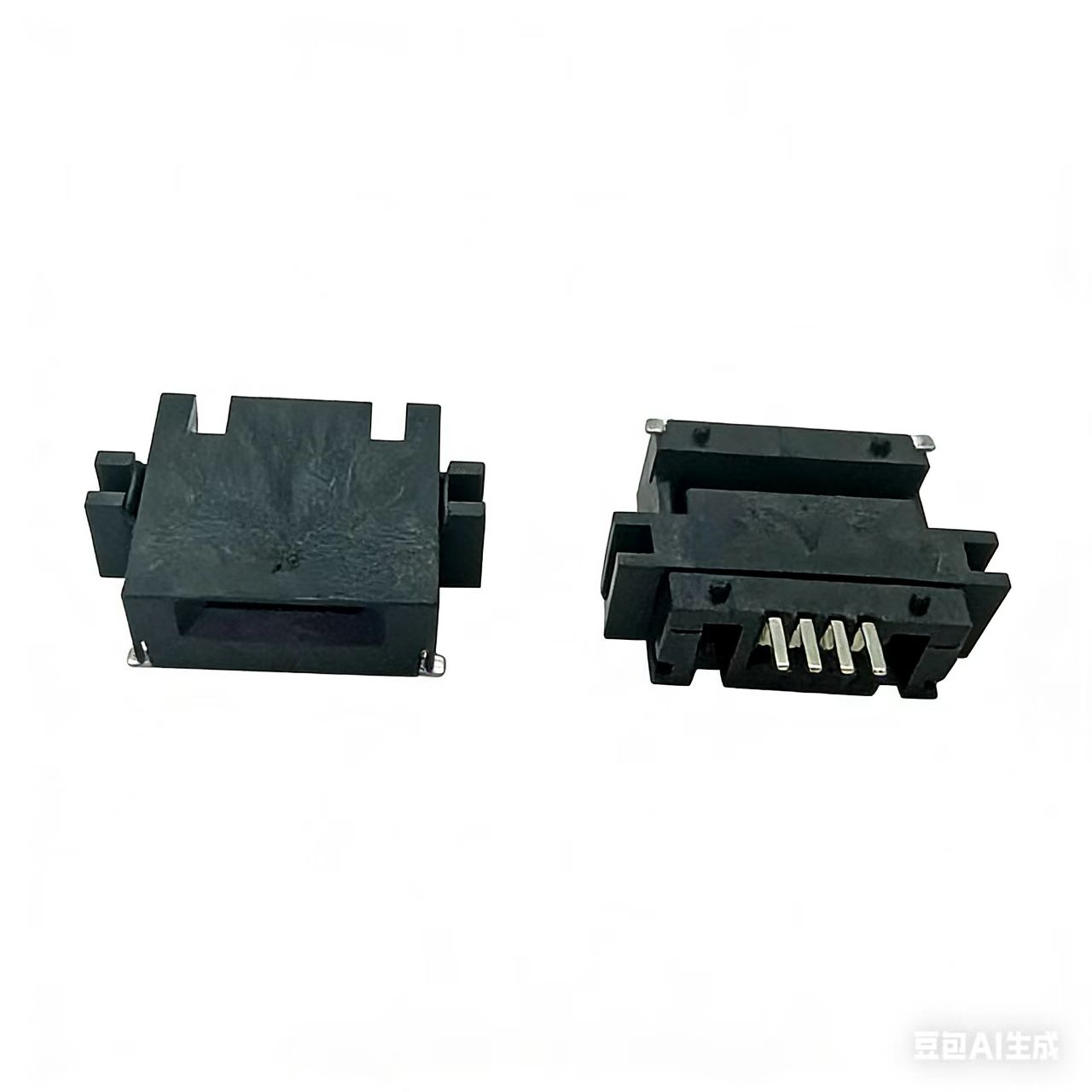

● Part Number : GP18C-06200

● Dimension:16*13.54*5mm

● MOQ:400/REEL

Material:

1.1 Insulator: Thermoplastic, UL94V-0,color:black.

1.2 Terminal: Phosphor Bronze,

1.3 Solder tab:STAINLESS SHELL T=0.2mm.

Plating of Contact

2−1 Terminal:Au plated on the contact area,Sn plated on soldering area.

2−2 solder tab: Sn plated on soldering area.

Mechanical performance

3−1 Mating Cycles: 27000 cycles

Electrical performance:

2.1 Rating current:0.3A Max.

2.2 Insulation resistance: 500MΩ Min. at 500 V DC.

2.3 Terminal contact resistance: 50mΩ Max.

2.4 Withstanding voltage:500V AC at 1mA Max. for 1 minute.

Environment performance.

3.1 Operating temperature: −20℃~ +70℃

3.2 Storage temperature: −40℃~ +85℃
