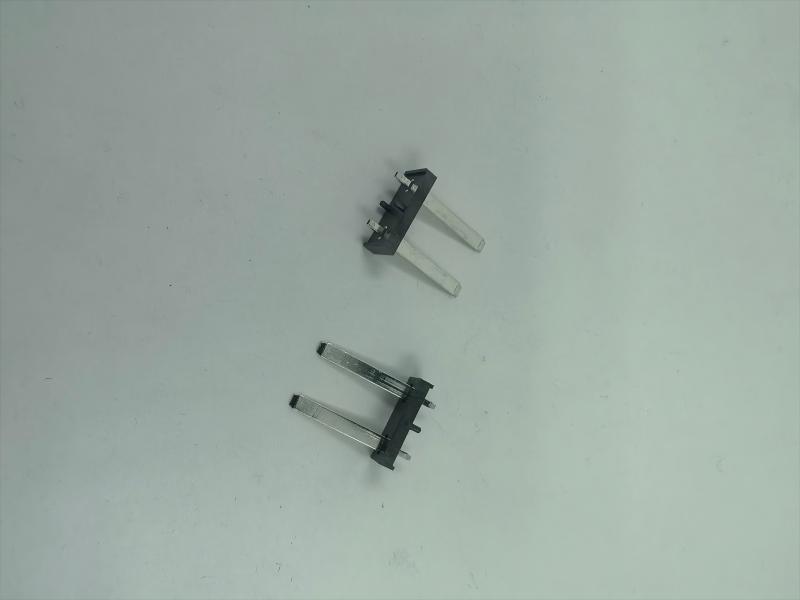

PH105002B-09300 2Pin Header Connector, 180° DIP Type

● Rated current up to 13A (Max)

● Certified to industry standards, with reliable electrical performance

● High temperature resistance, suitable for industrial and consumer electronics

● Part Number: PH105002B-09300

● Lead Time: 2-3 weeks

● MPQ: Customizable (standard packing: tube packaging)

We supply a full range of pin header connectors, including 2-pin through-hole (DIP) connectors and other wire-to-board solutions, serving customers worldwide for various electronic applications. Our products are widely used in home appliances, communication devices, industrial control systems, automotive electronics, and consumer electronics. We strictly adhere to ISO9001/ISO14001 quality management system standards for quality control and are committed to becoming your long-term reliable partner in China.

Send email to us Download Datasheet

Product Detail

Product Tags

Product Specification

Item	Parameter
Insulator Material	LCP (Thermoplastics), Black, UL94V-0 rated
Terminal Material	Copper Alloy, 0.80mm thickness, Tin over Nickel plated
Rated Current	13A (Max)
Insulation Resistance	≥1000MΩ at 500V DC
Contact Resistance	≤30mΩ (Max)
Dielectric Withstanding Voltage	500V (r.m.s.) AC at 1mA Max for 1 minute
Operating Temperature Range	-30℃ ~ +105℃
PCB Mounting Type	Through-Hole (DIP), 180° orientation
Recommended PCB Thickness	0.8mm ~ 1.6mm
Key Dimensions	Housing: 17.00±0.30mm × 7.00±0.30mm; Terminal length: 18.65±0.20mm; PCB pin length: 3.00±0.20mm

Product Features

● Reliable electrical performance: High insulation resistance and low contact resistance for stable signal/power transmission
● High-temperature resistant LCP housing, suitable for standard soldering processes
● Compact 2-pin design, ideal for space-constrained applications
● Robust terminal plating (tin over nickel) for corrosion resistance and long service life

Packaging & Order Information

Item	Details
Standard Packing	Tube packaging (as specified in the drawing)
MOQ	Negotiable
Lead Time	2-3 weeks
Shipping Details	Delivered via DHL/UPS/FEDEX/TNT international express services

Company Advantages

● Professional manufacturer with rich experience in electronic connector design and production
● Full in-house production control: From product design, tooling, injection molding, stamping, assembly, QC inspection to packaging and shipment, ensuring strict quality control. Custom special connectors are also available upon request.
● Fast response: Our sales, QC, and R&D teams are ready to reply to customer inquiries and resolve issues promptly.
● Diversified product portfolio: Pin headers, card connectors, FPC connectors, USB connectors, wire-to-board connectors, board-to-board connectors, and more.
