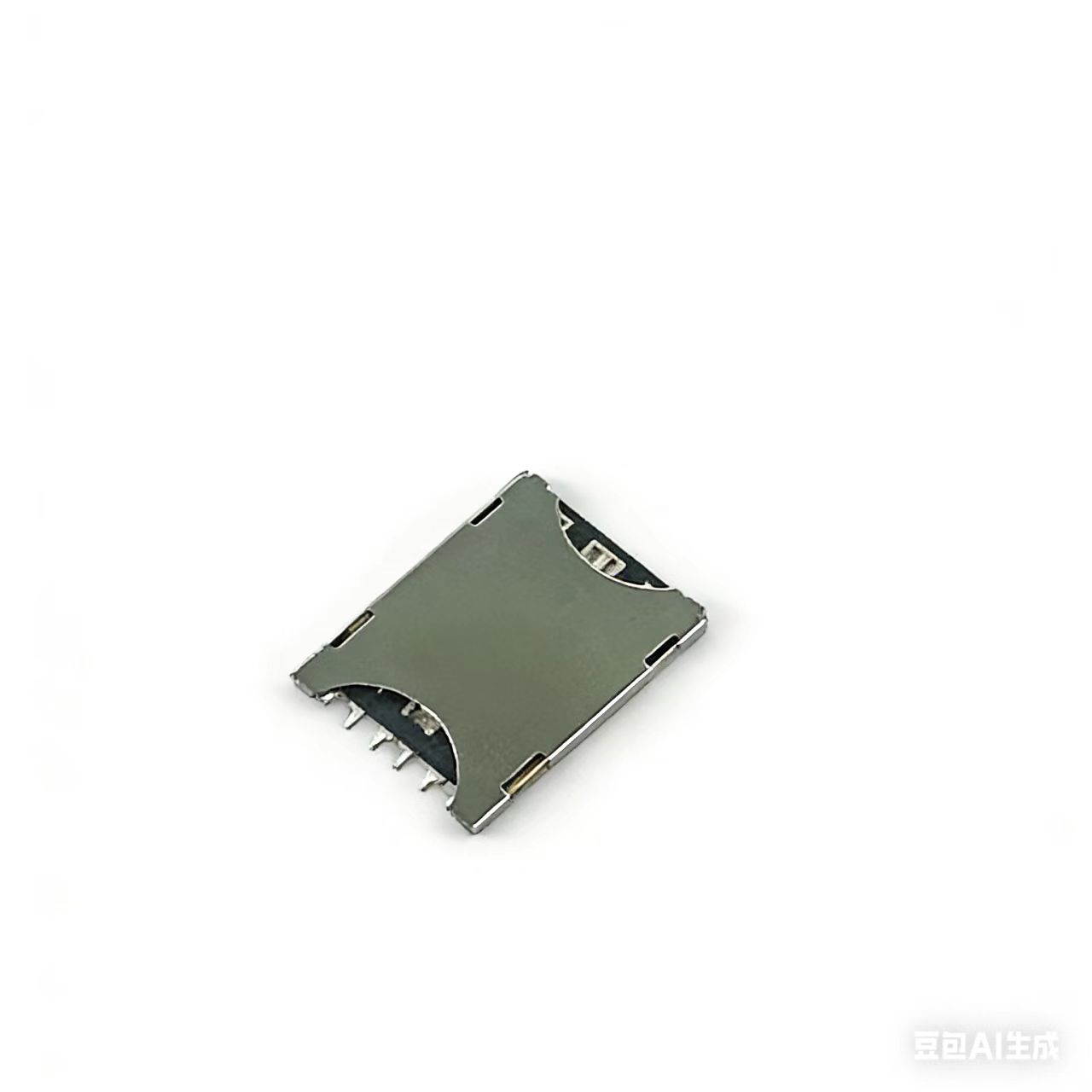

SI119A-08201 NANO SIM CARD 6P SMT H=2.1mm with post for smart phones

Short Description:

● 5000 times of insertion and plug out

● ISO9001 and ISO14001 Certification /Halogen free

● High temperature resistance

● Part Number : SI119A-08201

● Lead time: 2 weeks

● MPQ:1500PCS

Send email to us Download Datasheet

Product Detail

Product Tags

Short Description

Short Description:

● 5000 times of insertion and plug out

● ISO9001 and ISO14001 Certification /Halogen free

● High temperature resistance

● Part Number : SI119A-08201

● Lead time: 2 weeks

● MPQ:1500PCS

We supply SIM Card edge connector/nano sim card connector / 2.54mm nano sim card connector for smart phones for customers all over the world .

Products are widely used on computer and peripheral products, digital electronic products, communication electronic products, automobile electronic products, banking terminal electronic products, medical electronic products and home appliances electronic products, etc.

We strictly in accordance with the ISO9001/ISOI14001 quality management system standards for quality control. we are expecting become your long-term partner in china.

Product Specification:

Insulator	Lcp black UL94V-0
Plating of the connector	Phosphor Bronze,Tin 100U" At solder tailSelective gold on contact area plating.
Ground of micro sd card	Phosphor Bronze
Operating Voltage	100V AC
Current rating	1 A
Dielectric withstanding voltage	500V AC for one minute
Operating Temperature	-25--+85 degree
Humidity range	95% R.H Max
Insulation resistance	100M Ohm MAX
Rate voltage	15 V
Contact Resistance	100m Ohm Max
Life cycle	1500 times
Application	computers,digital camera; card reader,mobile phone, laptop
Products feature	● Long-time life cycle (more than 5000 times); ● High temperature resistance; ● Commonly used models;
Standard packing quantity	1500pcs
MOQ	1500pcs
Lead time	2-3 weeks

Company advantages

● We are manufacturer ,with about 20 years experiences in electronic connector field , there are about 500 staff in our factory now.

● From designing of the products,--tooling-- Injection - Punching - Plating - Assembly - QC Inspection-Packing - Shipment, we finished all the process in our factory except plating .So we can well control the quality of the goods.We can also customized some special products for customers.

● Fast respond. From sales person to QC and R&D engineer ,if customers have any problems, we can reply customer at first time.

● Variety of products: Card connectors/FPC Connectors/Usb connectors/ wire to board connectors /board to board connectors /hdmi connectors/rf connectors /battery connectors ...
