USB616FC-C2014240 USB TYPE C 16PIN FEMALE SMT for digital product
Short Description:
● 10000 times of insertion and plug out
● ISO9001 and ISO14001 Certification / RoHS and Reach compliant
● High temperature resistance
● Part Number :USB616FC-C2014240
● Lead time: 2-3 weeks
● MPQ:1000PCS
● Rating current : 3 A
● Salt spray test 48 hours
We supply various type C connector 6pin, 16pin and 24pin for customers all over the world .
Products are widely used on computer and peripheral products, digital electronic products, communication electronic products, automobile electronic products, banking terminal electronic products, medical electronic products and home appliances electronic products, etc.
We strictly in accordance with the ISO9001/ISOI14001 quality management system standards for quality control. we are expecting become your long-term partner in china.
Product Specification:
| Insulator | LCP black UL94V-0 |
| Plating of the connector | Au 1u” plated on the contact area. Sn 60-120u” plated on solder area, Ni50U” under plated over all |
| Shell | SUS304 |
| Rating Voltage | 20V DC |
| Current rating | 3A |
| Dielectric withstanding voltage | 150V AC/ 1 m A MAX |
| Operating Temperature | -25--+85 degree |
| Insulation resistance | 150V DC/ 100M Ohms MIN |
| Extraction force | 8-20N |
| Insertion force | 5-20N |
| Contact Resistance | 40m Ohms MAX |
| Life cycle | 10000 times |
| Application | computers,digital camera;power bank,ETC |
| Products feature | ● Long-time life cycle
● High temperature resistance; ● Commonly used models;
|
| Standard packing quantity | 1000pcs |
| MOQ | 1000pcs |
| Lead time | 2-3 weeks |
Company advantages
● We are manufacturer ,with about 20 years experiences in electronic connector field , there are about 500 staff in our factory now.
● From designing of the products,--tooling-- Injection - Punching - Plating - Assembly - QC Inspection-Packing - Shipment, we finished all the process in our factory except plating .So we can well control the quality of the goods.We can also customized some special products for customers.
● Fast respond. From sales person to QC and R&D engineer ,if customers have any problems, we can reply customer at first time.
● Variety of products: Card connectors/FPC Connectors/Usb connectors/ wire to board connectors /board to board connectors /hdmi connectors/rf connectors /battery connectors ...
Packing details:
Products are packed with reel & tape packing ,with vacuum packing ,outer packing is in cartons .
Shipping Details:
We choose DHL/ UPS/FEDEX/TNT international shipping companies to ship the goods .

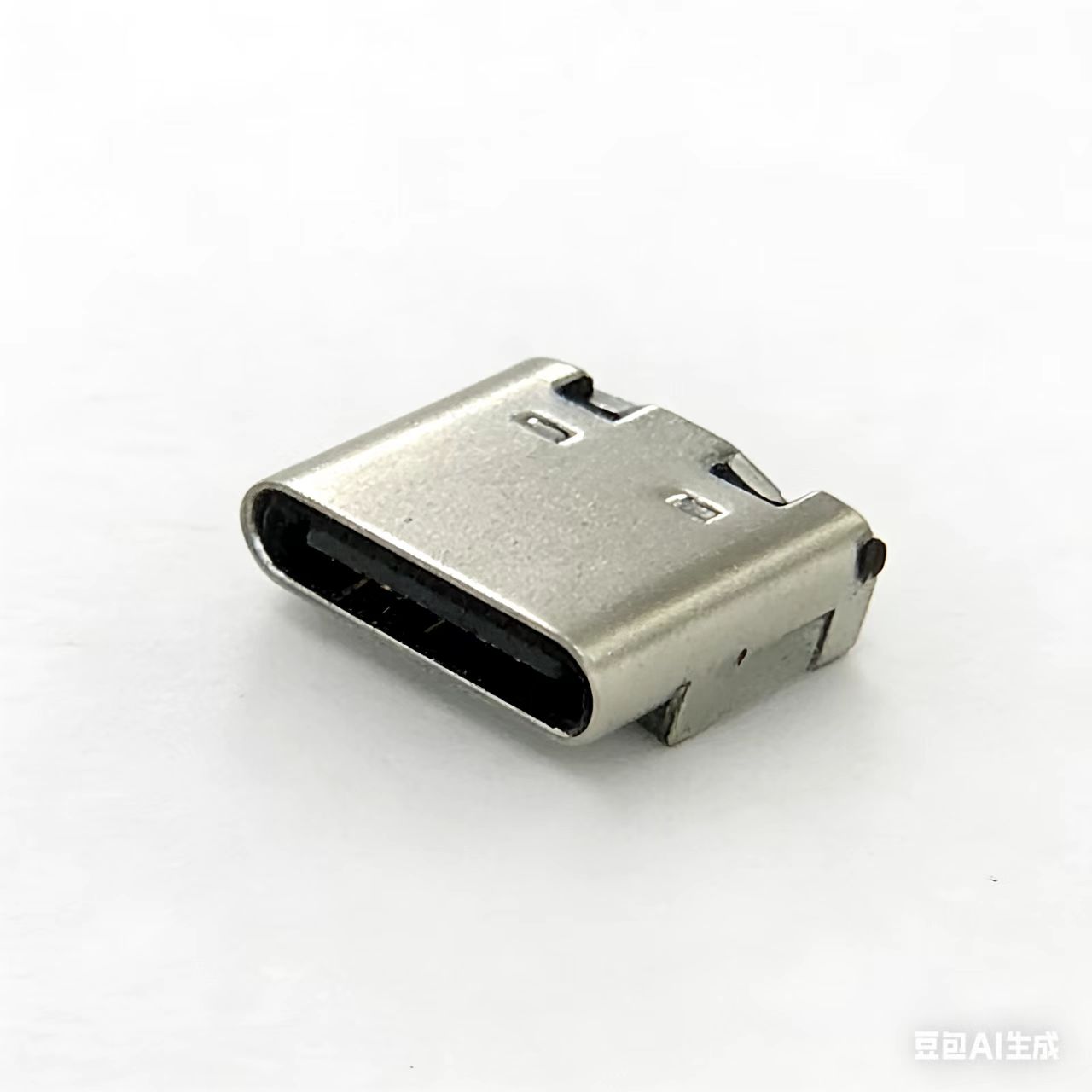

Product Images
